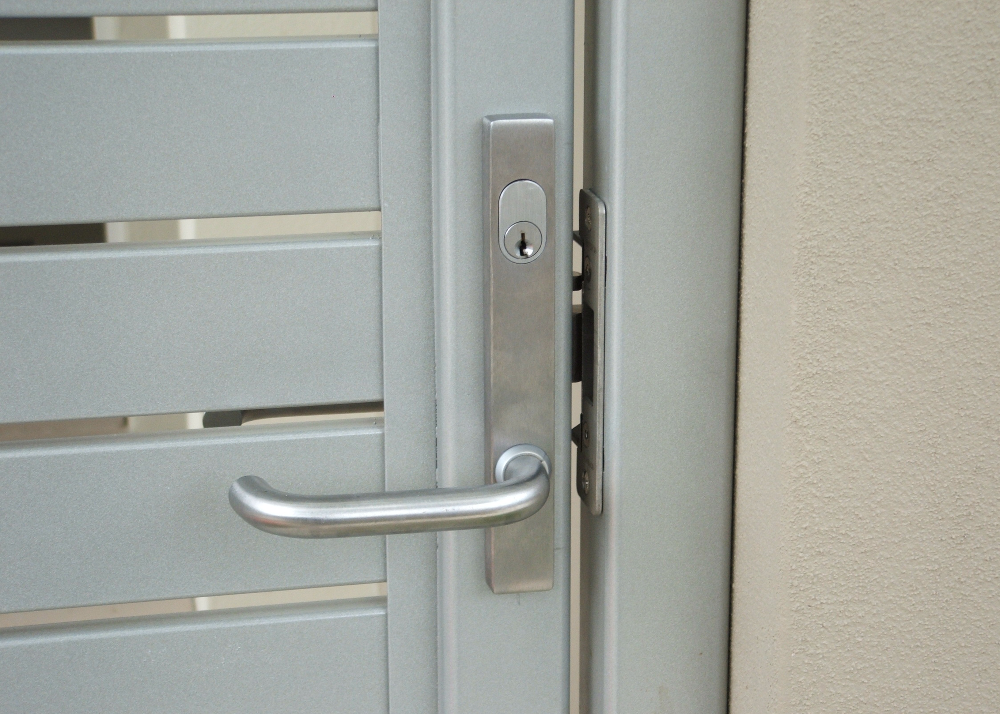

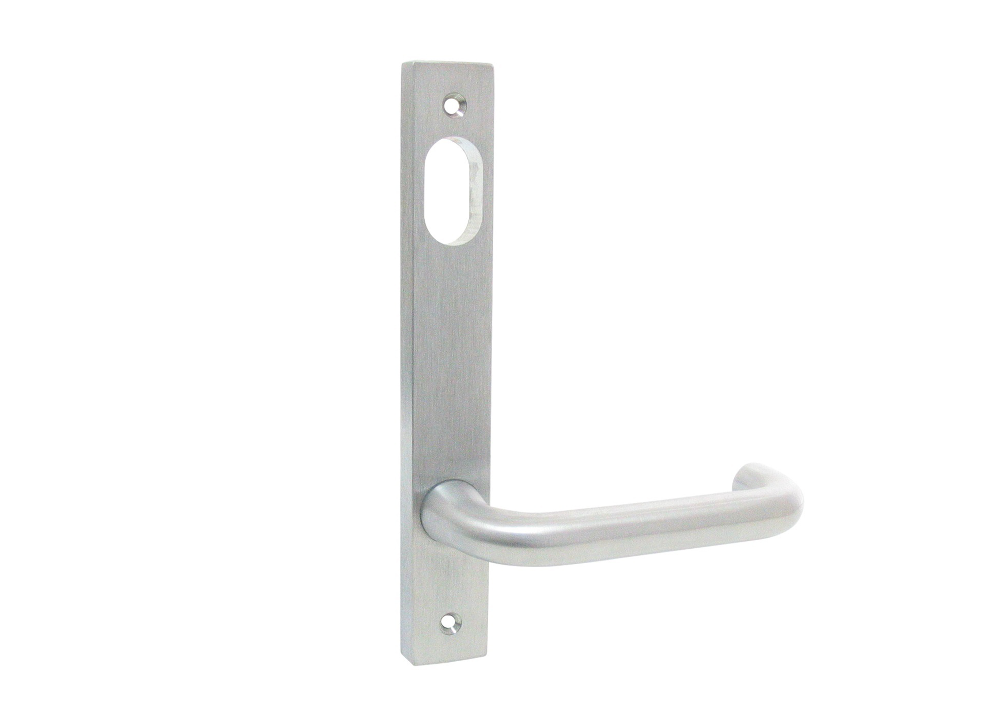

KABA Lock - Kit 66

Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag.
Plates are 12mm thick and are designed to fit back to back with visible fixing to outside plate. Tie bolt M5 fixing screws have a cross-recessed head.
Plates and knobs are non-handed with levers reversible on site in most cases.
Door Thickness: 32mm to 50mm
Finish: Satin Chrome Plate

DIMENSIONS
Height - 185mm
Width - 26mm
Thickness - 12mm
Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
Plates are 12mm thick and are designed to fit back to back with visible fixing to outside plate. Tie bolt M5 fixing screws have a cross-recessed head
Plates and knobs are non-handed with levers reversible on site in most cases
Door Thickness: 32mm to 50mm
Finish: Satin Chrome Plate

Zinc Alloy Case and Cover, 304 Stainless Steel Faceplate and Strike
